StressCheck Tutorial: Embedding and Meshing a Parametrized Pre-Crack Initiation Surface

Home ShopFracture Mechanics ModuleStressCheck Tutorial: Embedding and Meshing a Parametrized Pre-Crack Initiation Surface

StressCheck Tutorial: Embedding and Meshing a Parametrized Pre-Crack Initiation Surface

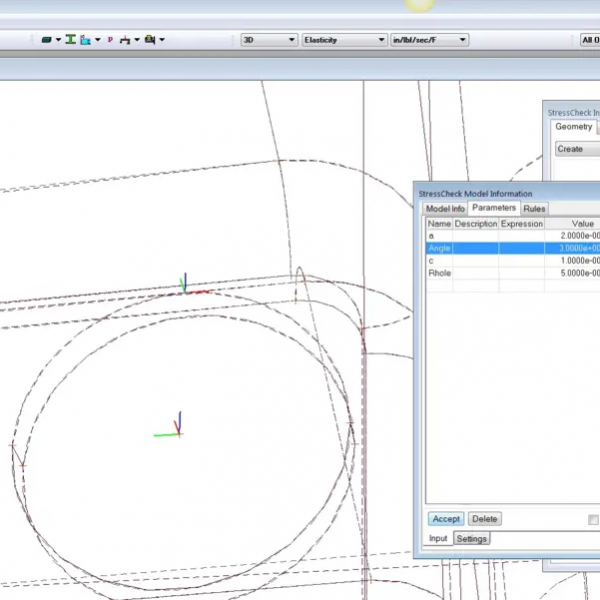

Abstract: Parametric modeling of an elliptical pre-crack initiation site based on the expected location and orientation of maximum first principal stress in a hole.  For the detailed stress analysis, the crack is initially disabled by inactivating the associated mesh records (Crack Face and Boundary Layer). After the expected crack initiation site is determined, the part-thru crack is clocked and the mesh records are then enabled for subsequent fracture mechanics or damage tolerance analysis of the crack initiation and crack extension.

Part 2: StressCheck Tutorial: Modeling a Broken Hole Ligament

  • Scroll to View This Resource (Login May Be Required)
You need to be logged in to view this content. Please Log in. Not a member? Register.

Related Content:

  • StressCheck Tutorial: Computation of Kt and Crack Initiation Beta Factor for a 2D Notched Plate in Tension
  • StressCheck Tutorial: Embedding 3-Point Plane for Resultant Extractions
  • StressCheck Tutorial: Transitioning from Part Thru to Thru Crack
  • StressCheck Tutorial: Extending an Elliptical Crack and Updating Mesh Assignments
  • StressCheck Tutorial: Modeling and SIF Extraction for a 3D Loaded Crack Face
