StressCheck Tutorial: Extracting SIF Distributions Over Crack Front Segments

Home ShopFracture Mechanics ModuleStressCheck Tutorial: Extracting SIF Distributions Over Crack Front Segments

StressCheck Tutorial: Extracting SIF Distributions Over Crack Front Segments

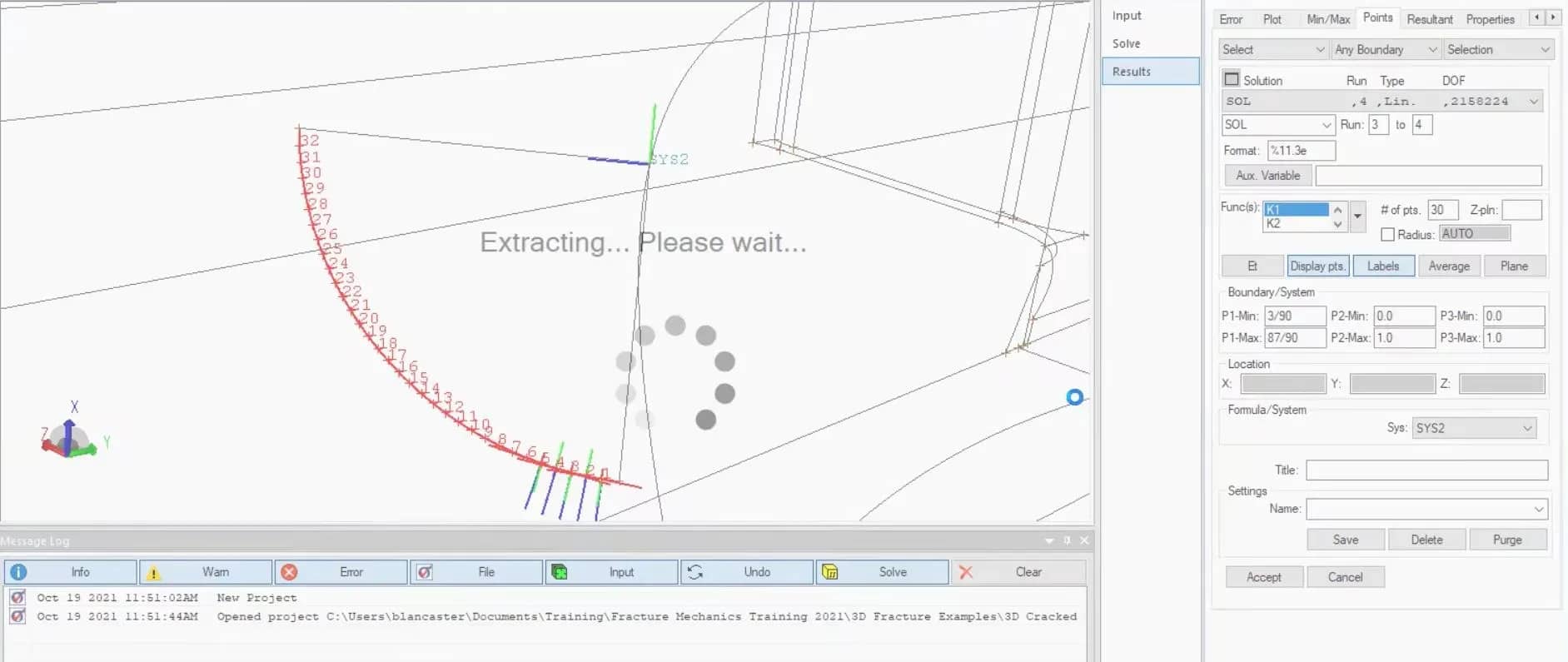

Abstract: it is not recommended to report the SIF values at the crack front curve endpoints due to the change in singularity type at free faces. When performing extractions in the Points tab, it is possible to ignore the crack front curve endpoints during SIF extraction by modifying the P1-Min and P1-Max values.
