Meshing & Discretization Archives - ESRD https://www.esrd.com/support/software-faqs/category/stresscheck-usage-implementation/meshing-discretization/ Engineering Software Research and Development, Inc. Mon, 29 Apr 2024 19:49:13 +0000 en-US hourly 1 https://wordpress.org/?v=6.6.2 https://www.esrd.com/wp-content/uploads/cropped-SC_mark_LG72ppi-32x32.jpg Meshing & Discretization Archives - ESRD https://www.esrd.com/support/software-faqs/category/stresscheck-usage-implementation/meshing-discretization/ 32 32 What Are the Requirements for Using Triangle and/or Quadrilateral Elements in StressCheck? https://www.esrd.com/support/software-faqs/requirements-for-using-tri-quad-elements-in-stresscheck/ Mon, 29 Apr 2024 19:44:19 +0000 https://www.esrd.com/?post_type=epkb_post_type_2&p=31697 In StressCheck, Triangle (3-sided) elements and Quadrilateral (4-sided) elements are available for meshing geometric surfaces and curves for subsequent engineering simulations. The following are the requirements (and limitations) for using Triangle and/or Quadrilateral elements in Planar, Extrude, Axisymmetric and 3D analyses.]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
What Are Some Tips for Automeshing 3D Cracks for Accurate SIF Computation? https://www.esrd.com/support/software-faqs/tips-for-automeshing-3d-cracks/ Wed, 13 Jan 2021 16:13:48 +0000 https://esrd.com/?post_type=epkb_post_type_2&p=19039 When extracting stress intensity factors (SIF’s or K’s) along a crack front that has been automeshed with tetra elements, the recommendation is to have two layers of refinements close to each other to reduce the aspect ratio of the tetras in the region of extraction; this mesh refinement strategy will minimize the mapping effect in the results and is applicable both for SIF and J-integral extractions.

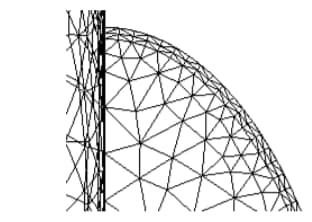

Elliptical crack automesh

Mesh Refinement Strategy

The innermost layer radius (ri) is typically 0.152 times the characteristic length of the singularity (crack). For example, if the characteristic crack length is 0.1, the innermost layer radius of elements should be ri = 0.152*0.1 = 0.00225. Then, the next layer radius should be 0.152*0.1*2 = 0.0045.

Regarding the rationale for the number 0.15, the optimal grading is actually closer to 0.17 but 0.15 has shown to be sufficient for accurate computation of SIF’s. From “Finite Element Analysis by Drs. Szabo and Babuska, Chapter 6: Regularity and Rates of Convergence”, page 194:

The optimal grading is q = (√ 2 − 1)2 ≈ 0.17, which is independent of the degree of singularity λmin [25]. In practice q = 0.15 can be used.

Chapter 6, Regularity and Rates of Convergence, Finite Element Analysis

For additional information, refer to Fracture Mechanics Meshing Strategies.

SIF Computation Strategy

The discussions in Computation of SIFs in StressCheck addresses three important considerations when computing SIFs:

  • Approximability of the exact solution,
  • Effect of element mapping in the results, and
  • Path-independence

Assuming the above mesh refinement strategy is utilized, it is recommended to use an extraction radius just outside the first (innermost) layer radius of elements. For example if the first layer of elements is within a radius ri use 1.2*ri for extraction.

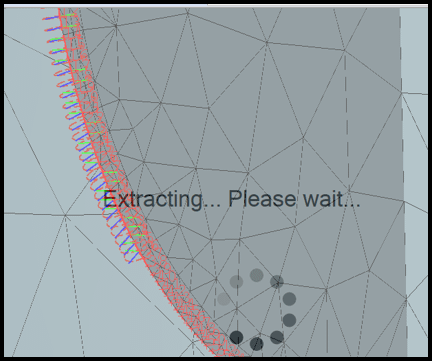

Integration radius shown between inner layer and outer layer

Note: in StressCheck v11 and newer, the integration radius available in the Points tab can be computed automatically for K’s and J’s. For additional information, refer to Fracture Mechanics Overview.

For an example of computing accurate SIF’s for 3D cracks, refer to StressCheck Demo: Part-Thru Crack SIFs for Stiffened Lug and StressCheck Tutorial: Crack Front Automeshing/Auto Integration Radius Features.

For additional information on fracture mechanics parameter extractions, refer to Fracture Mechanics Analysis Overview and Numerical Simulation Series: Fracture Mechanics Parameters.

]]>
Can I Delete An Automesh Without Deleting the Global Mesh Record? https://www.esrd.com/support/software-faqs/delete-automesh-elements-nodes/ Thu, 06 Sep 2018 18:26:33 +0000 https://esrd.com/?post_type=faq&p=7837 To delete all automesh objects (elements and nodes) without deleting a global automesh record use Select > Mesh > Auto and click Delete:]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
How Much Difference in Mesh Density Across a Contact Region is Acceptable? https://www.esrd.com/support/software-faqs/mesh-density-difference-across-contact-regions/ Tue, 24 Jul 2018 20:26:45 +0000 https://esrd.com/?post_type=faq&p=7508 StressCheck's multi-body contact algorithm does not require mesh conformity or a 1:1 ratio between contacting element faces. In fact, the element face distribution across assigned contact zones can be quite dissimilar in most practical applications.]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
Why Is There a Recommended Maximum P-level for Quadratically Mapped Automeshes? https://www.esrd.com/support/software-faqs/recommended-maximum-p-level-quadratically-mapped-automeshes/ Thu, 28 Jun 2018 18:59:40 +0000 https://esrd.com/?post_type=faq&p=7259 In general, it is recommended not to exceed a polynomial level (p-level) of p = 5 when solving a model with quadratically mapped (i.e. "Isoparametric" or "Isopar") elements.]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
What’s the Difference Between Quadratic and Geometric Mapping? https://www.esrd.com/support/software-faqs/quadratic-vs-geometric-mapping/ Fri, 08 Jun 2018 20:10:09 +0000 https://esrd.com/?post_type=faq&p=7080 Before we explore the answer to this question, let’s review a two important definitions regarding finite element method implementations: Mapping and Isoparametric Elements.]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
How Do I Debug Problem Meshing Face Error Messages? https://www.esrd.com/support/software-faqs/debug-problem-meshing-face-error-messages/ Mon, 14 May 2018 21:00:25 +0000 https://esrd.com/?post_type=faq&p=6873 In some cases, the MeshSim automesher may fail and provide the following error message (or similar): "MeshSim meshing error. Problem meshing face 1464095 at (0.059494844831943255, 0.14298635089067505, -0.011241197933960261)"]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
What Do the MeshSim Global Automeshing Parameter Inputs Affect? https://www.esrd.com/support/software-faqs/meshsim-global-automeshing-parameter-inputs/ Wed, 22 Nov 2017 03:59:22 +0000 https://esrd.com/?post_type=faq&p=5008 In order to generate an automatic mesh (automesh) for a sheet or solid body, at least one global MeshSim automesh record must be active and associated with the sheet or solid body. The MeshSim automesh inputs depend on the version of StressCheck.]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
What is the Size Input for Local Automeshing? https://www.esrd.com/support/software-faqs/size-local-automeshing/ Mon, 30 Oct 2017 19:48:20 +0000 https://esrd.com/?post_type=faq&p=4636 The "Size/Local Size" parameter is typically the absolute size of the elements in and around the assigned point/curve/surface after Local automeshing (Create > Mesh > Local/Local Size).]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
How Do I Troubleshoot Small-Feature Automeshes? https://www.esrd.com/support/software-faqs/troubleshoot-small-feature-automeshes/ Thu, 16 Mar 2017 07:33:56 +0000 http://esrd.com/?post_type=faq&p=2493 When CAD files imported into StressCheck have very small geometric features, these are sometimes suppressed by the MeshSim automesher, resulting in elements not associated with the geometric surfaces in regions near the small features.]]>
You need to be logged in to view this content. Please Log in. Not a member? Register.
]]>
