In this “S.A.F.E.R. Simulation” post we will share the key takeaways for engineers and their managers from a recent ESRD webinar on “Durability and Damage Tolerance Analysis Best Practices in the A&D Industry”. We’ll identify the factors that restrain the wider adoption of computational numerical simulation methodologies, and in particular finite element analysis (FEA) software, when used for detail stress analysis in support of critical engineering tasks such as fatigue life prediction. We hope to lift the fog that exists over the limitations of legacy FEA methods that are encountered by even the most expert simulation analysts. These same challenges make durability & damage tolerance (DaDT) calculations impractical if not risky for the occasional and especially new engineering user to perform.

Why DaDT is becoming ever more important with aging aircraft fleets….

The C130 Hercules transport aircraft depends heavily on reliable DaDT predictions to stay in service

There are numerous fixed wing and rotorcraft platforms that have far exceeded their initial program estimates for years in service. Keeping these aircraft flying safely with ever increasing performance requirements has fueled the need for more reliable and robust computational tools in fatigue life and fracture crack growth calculations to support the DaDT engineering function within repair, maintenance, and sustainment organizations. Aerospace and Defense (A&D) conferences like the Aircraft Airworthiness and Sustainment (AA&S) and Aircraft Structural Integrity Program (ASIP) have become increasingly important in their role to share best practices and new technologies which can improve aircraft life and reduce cost by expanding maintenance intervals. These conferences have revealed the need for new simulation technologies, and software tools based upon them, which improve the fidelity, accuracy, thoroughness, and speed of engineering analysis with improved confidence, reliability, and robustness of results and processes that is independent of the user or model.

To illustrate this growing demand, a strength engineer performing a “typical” stress analysis at the design stage is often delighted with answers within, say, 5% of actual or expected values. But when performing DaDT engineering simulations, being “close” with stress intensity factor (SIF), beta or other fracture mechanics computations is not good enough. For example, as the below figure demonstrates, being off by as little as 5% in SIF predictions can result in a 350% difference in crack growth cycles. The impact of getting this type of prediction wrong can be catastrophic for engineers practicing in the A&D industry (and beyond).

The sensitivity in DaDT life predictions is driven by unknown risks in the input data (e.g. SIF’s)

The application and value of FEA-based tools for numerical simulation is well established in the commercial and military aviation industry. The structural design, loads, strength and stress groups routinely use finite element models to generate internal loads of entire aero structures. FEA tools are then used to perform detail stress analysis to calculate margins of safety on components that are resistant to engineering handbooks, design curves, closed form solutions, and empirical data.

However, in many organizations there is still a preference for quick hand-whipped stress analysis with ample margins of safety when the alternative is constructing complete 3D virtual prototypes with no detail lacking, or to perform more testing on physical prototypes.

Fast high-Fidelity FEA of large aircraft assemblies is still problematic…

Modeling of large multi-scale spanning geometries for capturing SIF’s is unfeasible in most FEA codes

The wider-spread use of FEA tools in fatigue and fracture domains for DaDT calculations is another matter. Over ESRD’s twenty plus years of working within the aerospace community, as well as attending industry conferences like ASIP and AA&S, we have observed a reluctance to turn to the FEA tool kit in the calculation of important DaDT engineering data such as SIF’s. This is surprising as ever-increasing demands on airframe performance and life expectancy are requiring a larger volume of higher-fidelity structural analyses be conducted with improved levels of certainty and confidence. This is occurring at a time where budgetary constraints translates into fewer engineers available to perform analysis work that has become more complex, all with less time for advanced training and fewer resources to rely upon in methods and tools support groups.

In interviewing engineers and their managers who are responsible for DaDT work, we have heard these reservations about the generic use of FEA:

“It takes too long to import and clean up the geometry then build a high-resolution mesh around a high-risk or damaged component.”

“Solving crack propagation problems on my desktop computer takes too long as it is, then I have to go thru many cycles to debug and tune a model to get a result that is believable.”

“The quality of my solutions are a subjective exercise at best, based on my years of experience in handling similar types of analysis problems.”

“My team managers have more faith in historical analysis methods and it’s hard to convince them to let us loose on a digital model.”

All of the above issues were indeed valid at one time. It is not surprising that an organizational dependency arose on using closed-form solutions and empirically-based handbook tables to predict SIF’s. That was true even for design geometries and load cases that had little resemblance to their textbook surrogates.  Yet, not every analysis can be reduced to well-known cases like a simple plate with a thru-crack. It can be risky to force fit an existing curve or table to meet the needs of an analysis which is clearly well out of its original scope. An example is the use of compounding beta factors to account for variances in geometry and loads which can be precarious to apply and prone to error.

Despite these challenges, many DaDT engineers, rather than changing the legacy processes of their organizations, rely on historical methods no matter however approximate they are.  When these simpler methods failed, they would as a last resort – clearly not the first choice – turn to FEA for modelling complex 3D geometries with a wide variety of loadings, material types, residual stresses, crack shapes, and other complicating features.

Another inconvenient truth…

Despite their longevity in the industry, even legacy FEA methods and software struggle with these more complex classes of problems in DaDT, even when employed by simulation experts.  Obtaining consistently accurate and numerically verifiable solutions with traditional finite element methods has unfortunately added more complexity, time, risk, and cost that was prohibitive for many organizations to endure, especially when they were seeking speed, confidence, and safety.  Only a few highly experienced and well-trained DaDT specialists could perform the work due largely to endless sources of approximations, idealizations, decisions, judgement calls and errors in modelling, analysis, and results interpretation. There was little time available to think about numerical verification, much less understand it was not the same as results validation.

The reason for this state of simulation in DaDT is often obscured by a fog of complexity hiding underneath the hood of legacy FEA codes. The foundational finite element theory, methods, and technology base implemented by nearly all commercial FEA software products has remained largely unchanged over decades. That is not to say there have not been substantial improvements in aspects of FEA such as model creation for faster preprocessing, high performance computing for faster analysis, and improved visualization for post-processing. Yet, these only masked underlying limitations that made FEM an art for the expert masters rather than a reliable numerical computational science for the engineering masses.

These limitations are well known to users of simulation software – as evidenced by the size of the element library – but are less so recognized by their managers who often think this is just the way it has to be. In our next S.A.F.E.R. Simulation post we plan to discuss how these limitations in legacy FEA throttle the wider use and economic value of numerical simulation across the A&D industry. Nowhere is this timelier than in the supply and service chains which have increasing authority for design and analysis, and now new accountability for lifecycle maintenance and program sustainment that requires deeper expertise in DaDT.

Fixing the Holes…

Example 3D crack life calculation using FEA-based methods (ESRD’s Crack Propagation Analysis Tool)

For the last decade ESRD has been at the forefront of advancements in numerical simulation that makes the performance of finite element analysis less a craft of modelling traps, tips, and tricks when practiced by experts, and more S.A.F.E.R. methodology when used by the non-expert. With these advancements it is now possible for DaDT engineers to conduct analyses using more transparent models with greater accuracy, producing faster simulations in more efficient workflow processes which require less re-meshing and debugging, and generating more reliable results from inherently more robust methods independent of the level of expertise of the user or complexity of the engineering problem.

In a future S.A.F.E.R. post on the use of FEA in DaDT we will dive deeper into what makes this now possible in practice. Until then, in the most recent ESRD webinar on DaDT we demonstrated several example fatigue life and crack propagation problems which illustrated that conventional expectations of being “close enough” are no longer “good enough”.  To view this webinar click here. If your corporate firewall prohibits live access please send us an email to webinars@esrd.com and we can provide a link to download.

What do you think…

Related links and conversations…

• ESRD’s DaDT and Fracture Mechanics Application Highlights (via ESRD.com)
  • Learn about the types of DaDT and fracture mechanics applications for which ESRD is best suited, and how A&D engineers solving legacy aircraft problems can benefit from our simulation technology.
• Seven Questions to Ask CAE Vendors of Structural Analysis and Simulation Software (via Engineering.com)
  • Engineering.com Editor Shawn Wasserman highlights what questions are driving simulation technology and development, and what factors should determine the best tool for a simulation (such as DaDT).
• NAFEMS World Congress 2017 Tackles the Big Issues in Simulation and Analysis (via Digital Engineering)
  • DE’s Jamie Gooch describes the events and presentations given at the most recent NAFEMS World Congress, including how ESRD’s Chairman Dr. Barna Szabó warned against democratization of simulation without Simulation Governance.

To receive future S.A.F.E.R. Simulation posts…

ESRD, Inc. will be exhibiting and providing a training course at the AA&S/PS&S Conference 2019 in Washington, D.C. from April 22-26, 2019.  We hope you will drop by our training course and booth to check out the latest!

Training Course

The training course titled “How Do You Verify the Accuracy of Engineering Simulations?” will be held Monday, April 22, 2019 / 3:00 PM – 5:00 PM by Mr. Gordon Lehman, PE. The description is as follows:

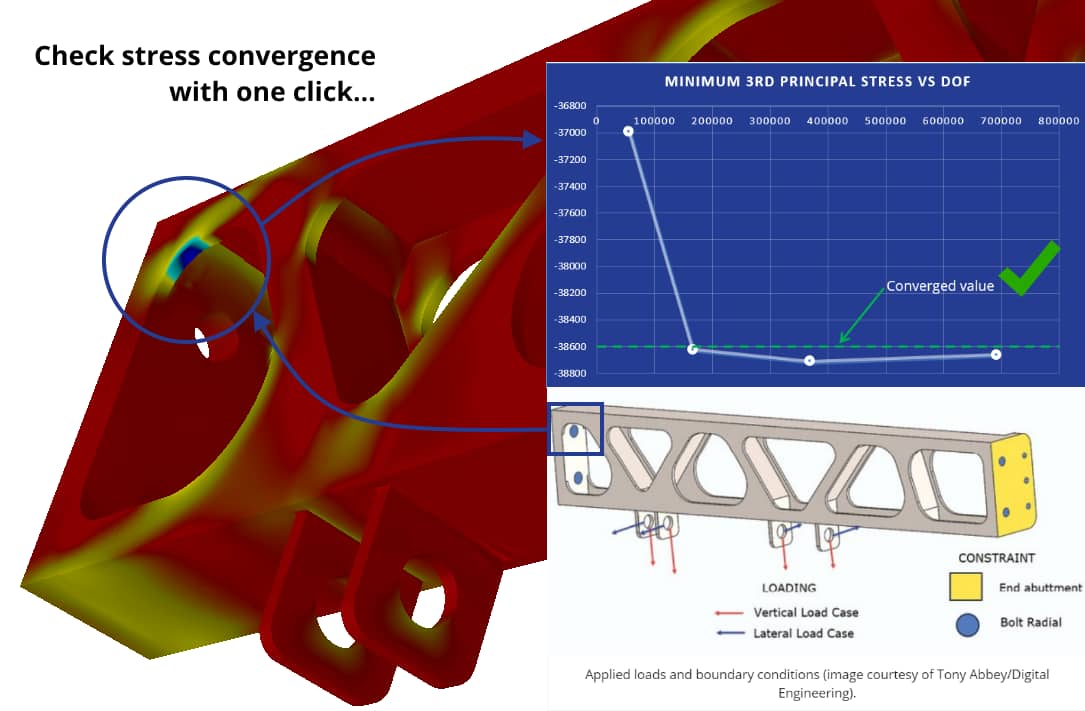

Convergence of minimum principal stress in an aircraft keel beam structure (courtesy Digital Engineering)

This Training Class will review strategies for verifying the accuracy of engineering simulation data, including best practices and common pitfalls engineers may encounter when assessing the quality of their engineering simulation results.

We will explore why is the practice of solution verification for FEA results important? And what checks must always be performed before reporting your FEA results as “accurate”?

The class will dive into the four key quality of solution checks that should be examined to confirm solution verification of detailed stress results.

This will be accomplished by examining a variety of publicly-available and industry-applicable case studies, benchmarks and industry examples, to determine the most efficient and reliable methodologies to perform solution verification.

The training course content structure will be based on our January 2019 webinar and recent S.A.F.E.R. Simulation blog article “What Are the Key Quality Checks for FEA Solution Verification?”. You can watch the 38-minute recording and read the article below:

• Webinar Recording: How Do You Verify the Accuracy of Engineering Simulations?
• S.A.F.E.R. Simulation Blog Article: What Are the Key Quality Checks for FEA Solution Verification?

Exhibit Booth

ESRD can be found at Booth 110, conveniently located near the entrance to the exhibit hall.  Feel free to stop by and discuss the training course content, S.A.F.E.R. Simulation, StressCheck Professional, CAE Handbook, StressCheck Tool Box, and What’s New with ESRD!

ESRD’s Andrew Ledbetter talks to an AA&S 2018 attendee.

While you’re at the ESRD booth, be sure to grab one of our giveaways, including this nifty foam flyer:

StressCheck foam plane (it actually flies!)

Contact information for ESRD staff is as follows:

• Mr. Gordon Lehman, PE – gordon.lehman@esrd.com

WATCH THIS WEBINAR

Part 1: Introduction & Implementation Requirements

Part 2: StressCheck & AFGROW Features

Part 3: BAMF Demo & Webinar Summary

All it needs is a turboprop and flaps…

Now that AA&S registration is officially open, we’d like to announce that ESRD will be exhibiting at AA&S 2018 in Jacksonville, FL from April 23-26! Come visit us at our booth (112), chat with Gordon and other ESRD staff about S.A.F.E.R. Numerical Simulation in the hyper-competitive A&D industry, and pick up a nifty souvenir (it really flies!).

Stay tuned for more details about our participation in this popular and well-regarded conference.

Schedule a Meet-Up

Would you like to schedule a meet-up at AA&S to discuss potential software/consulting needs or technical questions? Contact us by filling in the form below, and we’ll be happy to set up a date and time that works best for you:

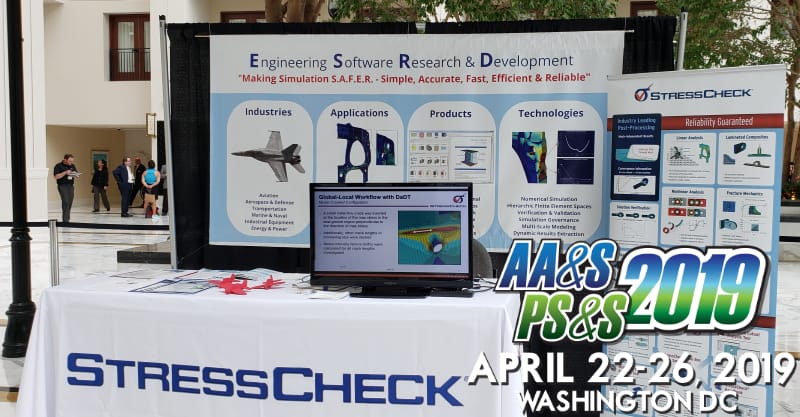

ESRD’s booth at AA&S/PS&S 2019 in Washington, D.C.

This past week at AA&S/PS&S 2019, ESRD’s Gordon Lehman provided a 2-hour training course titled “How Do You Verify the Accuracy of Engineering Simulations?”, chatted with attendees about StressCheck and how it supports detailed aerostructures analyses, and exhibited at our colorful & engaging booth (see above image).

Mr. Gordon Lehman, PE.

Gordon enjoyed meeting many of the AA&S/PS&S attendees, connecting with a wide variety of ESRD customers and colleagues, and sharing ESRD’s expertise on checking the quality of FEA results during his training course. Thanks to those who stopped by to say hello to Gordon (and took home one of our red aerodynamic flyers).

AA&S/PS&S 2019 Training Presentation Available…

On Monday, April 22nd, Gordon had the pleasure of providing a training course on FEA solution verification best practices (illustrated by industry and benchmark case studies) to a large group of AA&S engineers. Thanks to those who attended and/or requested the training course presentation.

If you are interested in learning more about this fascinating topic, you can download Mr. Lehman’s AA&S training presentation (in PowerPoint show or PDF format) from the link below:

AA&S 2019 Training – How Do You Verify the Accuracy of Engineering Simulations?

We are looking forward to receiving your feedback on the training course presentation.

Benchmarking-By-FEA…

Interested in learning more about the “benchmarking-by-FEA” process discussed in the training course? See this process in action for one of the training course examples:

StressCheck Demo: Benchmarking 3D Stress Concentration Factors via Numerical Simulation

If you’d like to see a specific “benchmarking-by-FEA” case study demonstrated, please submit your request and we’ll be happy to review.

Upcoming Webinar…

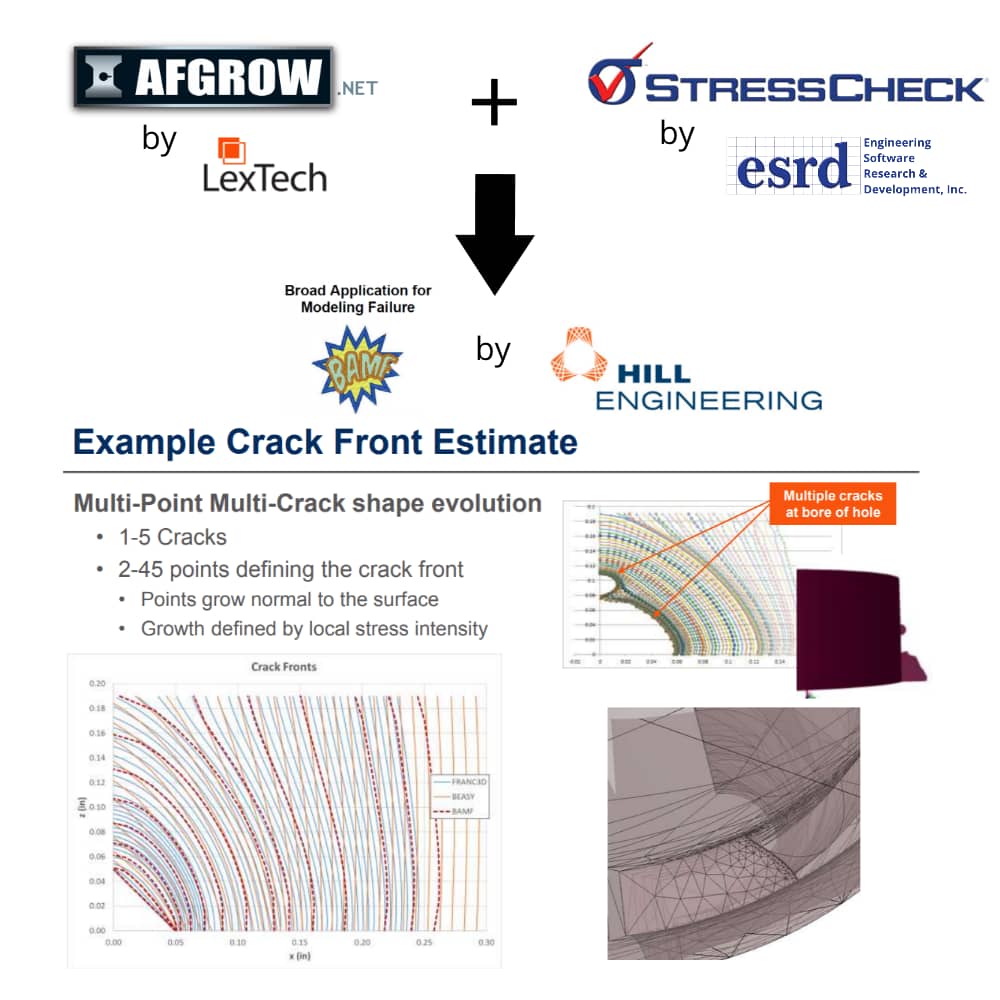

BAMF Example Crack Front Estimate via StressCheck/AFGROW Integration (courtesy Hill Engineering).

We are pleased to announce a joint Summer 2019 webinar with Hill Engineering, LLC (developers of BAMF) and LexTech, Inc. (developers of AFGROW) to discuss the state-of-the-art in 3D crack growth simulations. During this DaDT-focused webinar, Hill Engineering will provide a demonstration of how StressCheck and AFGROW were seamlessly integrated into their fatigue analysis software application BAMF. From the latest BAMF release notes:

Hill Engineering is announcing the release of version 6.0 of our Broad Application for Modeling Failure (BAMF) software. BAMF is used for fatigue analysis, and it is capable of predicting the growth of fatigue cracks in 3D parts. Starting from an assumed initial flaw, BAMF combines stress and crack growth analyses to predict the evolution of crack shape and size in 3D.

BAMF provides a robust and automated link between two leading tools: AFGROW and StressCheck™. Key features of BAMF include: natural crack shape evolution, fully 3D fatigue analysis capability, complex loading support, multiple cracks, and residual stress compatibility.

Learn more and register for the July 17th, 2019 webinar:
