At this year’s ASIP 2023 Conference in Denver, CO, ESRD provided a 2-hour training course titled “Enhancements in StressCheck v12.0 for DaDT Analysis of 3D Fastened Connections”, presented a technical paper titled “Experimental Validation of DTA Modeling of Bonded Wing Skin Repairs“, and passed out 3D printed F-35 and C-130 models at our booth inside the Gaylord Rockies Resort & Conference Center. The models were a big hit — look out for some new aircraft next year!

Conference Snapshot

ESRD’s Brent Lancaster, Patrick Goulding, and Brian Lockwood spent the week chatting with ASIP attendees and meeting many enthusiastic StressCheck users. The ASIP Conference has become an exciting platform for demonstrating many strong use cases of StressCheck spanning the ASIP community, with around a dozen technical presentations utilizing our technology for their DaDT analyses. We are honored to be such a prominent part of this event and to have so many talented and loyal users in this industry.

We would like to extend our sincerest gratitude to all those who attended Brent’s training, Brian’s technical paper presentation, and/or stopped by our booth to say hello to us. In addition, this was Patrick’s first ASIP Conference and he was thrilled to have the opportunity to meet you all. We really enjoy getting the chance to see you each year and we’re already looking forward to attending ASIP 2024 in Austin, TX.

ASIP 2023 Training Materials Available

On Monday, November 27th, Brent had the pleasure of providing a training course to a large group of attentive ASIP engineers on Enhancements in StressCheck v12.0 for DaDT Analysis of 3D Fastened Connections. We were thrilled with the level of interest and engagement, and the opportunity to present the latest in StressCheck. Thanks to those who attended the training course in person (as well as virtually)!

If you are interested in this topic, you can download Brent’s training presentation (in PowerPoint show or PDF format) and watch the video demo via the below link (note: you must be a registered user to view the training materials):

We are looking forward to receiving your feedback on the training course presentation, as well as your ideas for ASIP 2024 training course topics.

ASIP 2023 Technical Paper Presentation Available

On Thursday, November 30th, Brian had the honor of presenting his technical paper “Experimental Validation of DTA Modeling of Bonded Wing Skin Repairs” to a strong audience of engaged ASIP attendees. The paper was a collaboration between ESRD, AP/ES (Dr. Scott Prost-Domasky) and USAF AFMC WRALC/ENC (Laura Pawlikowski), and continued their project discussed in last year’s presentation (“DTA of Bonded Repairs on the Wing Skin of the C130 Using Finite Elements“) by providing experimental testing data to validate their simulation results.

If you are interested in this topic, you can view Brian’s technical paper presentation (in PowerPoint show or PDF format) via the below link (note: you must be a registered user to view the training materials):

Preview StressCheck v12.0!

Would you like to schedule a preview demonstration of the new features in StressCheck v12?

We would be happy to walk you through the exciting updates to the user interface design, model navigation and visualization tools, and enhanced meshing features.

ESRD, Inc. will be exhibiting, presenting a technical paper (on DTA of bonded repairs) and providing a 2-hour training course in person and virtually at the ASIP Conference 2023 in Denver, CO from November 27-November 30, 2023.  We hope you will drop by our technical presentation, training course and/or booth to check out the latest ESRD developments!

ESRD’s Training Course

A 2-hour training course titled “Enhancements in StressCheck v12.0 for DaDT Analysis of 3D Fastened Joints” will be held Monday, November 27th from 10:00 AM – 12:00 PM MST by ESRD’s Brent Lancaster.  The course description is as follows:

As more DaDT and service life analysis (SLA) engineers look to incorporate the influence of assembly multi-body contact, fastener hole propping and/or fastener load transfer into their beta factor and/or stress intensity factor (SIF) predictions, it is imperative that the numerical simulation of these effects on 3D fracture mechanics parameters can be ascertained without inflicting cumbersome modeling workflows, endless meshing cycles, and high computational costs on the end user. This training course will outline proposed methodologies, guidelines and best practices for ESRD’s StressCheck Professional finite element analysis (FEA) software to perform efficient and accurate DaDT analysis of flawed 3D fastened connections and multi-body contact assemblies, including enhanced automeshing and SIF extraction techniques now available in StressCheck v12.0. In addition, several live demonstrations of technology will be performed for representative use cases.

In this 2-hour training course, we will focus on the following topics:

• StressCheck’s FEA technology implementation for the modeling, meshing and analysis of arbitrarily shaped 3D crack geometries, with and without the local effects of multi-body contact.
• Strategies for automatic meshing of 3D cracks with high-aspect ratio, 3D-solid pentahedral and hexahedral elements to support high-quality SIF extractions at any location on the crack front.
• New StressCheck v12.0 method to support multi-body contact assembly meshing, auto-detection of contact regions, and automatic assignment of contact pairs for 3D solid bodies.

The training course content will be based on concepts from the following resources, available on ESRD’s Resource Library and online documentation:

• ASIP 2018 Training – Modeling Fastened Connections: Hierarchic Approaches Discussion and Demo
• Helpful Hints and Tips: 3D Stiffened Lug Stress + Crack SIF Analyses
• Helpful Hints and Tips: Interference Fit Bushing + SIFs
• StressCheck Demo: Part-Thru Crack SIFs for Stiffened Lug
• StressCheck Tutorial: 3D Elliptical Part-Thru Crack with Multi-Body Contact
• StressCheck Tutorial: Filled vs Open Hole SIF Comparison for 3D Offset Hole

ESRD’s Technical Presentation

A 30-minute technical presentation titled “Experimental Validation of DTA Modeling of Bonded Wing Skin Repairs” and authored by Mr. Brian Lockwood (ESRD), Ms. Laura Pawlikowski (Warner Robins ALC) and Dr. Scott Prost-Domasky (AP/ES) will be presented by Brian Lockwood on Thursday, November 30th at 10:30 AM MST.

As the principal investigator on this USAF SBIR-funded project, Brian will be presenting an update to his work so far in utilizing StressCheck’s finite element analysis implementation to assess the effectiveness of bonded skin repairs on the C-130 center wing. The technical presentation description is as follows:

This presentation is a follow-up to ESRD’s 2022 ASIP presentation titled “DTA of Bonded Repairs on the Wing Skin of the C-130 Using Finite Elements.” That presentation explored a robust method for finite element analysis of bonded skin repairs from the perspective of both static strength and fatigue crack growth. The proposed analysis methodology was presented in a comparative sense, examining a number of criteria in the skin in an undamaged state, a damaged state and a repaired state, in order to allow the analyst to make an assessment of repair effectiveness without detailed knowledge of either the exact boundary conditions of the problem, or of the intricacies of the model itself. One of the criteria for a patch to be deemed effective is that the fatigue life of the skin be at or above that of the pristine configuration.

Given the sparse nature of research on the topic of crack growth under bonded repair patches, ESRD partnered with AP/ES to conduct an experimental program to investigate in detail how a small initial flaw propagates in the aluminum skin under a titanium repair up through failure. Experiments were performed alongside blind predictions of life and crack morphology using ESRD’s research tool, CPAT. Additionally, statistical analysis was performed to assess confidence in the predictions. Given the aleatory uncertainty associated with the available crack growth data for the specimen material, it was important that predictions of fatigue life be accompanied by a confidence level when comparing them with experimental outcomes. Because most of the crack propagation occurred under the repair, a marker band spectrum was used during the test and the crack-cycle data was constructed from fractographic examination. The experimental program covered three specimen configurations:

• Undamaged skin with a surface crack or a corner crack at a hole.
• Skin with a grindout (to remove hypothetical corrosion damage) and either a surface crack at the bottom of the grindout or a corner crack at a hole located at the center of the grindout.
• Same as previous configuration, but including a bonded titanium repair.

Experimental and predicted results will be presented.

ESRD’s Exhibit Booth

ESRD can be found at Booth 5 and will have several staff members available to chat, provide demonstrations, troubleshoot issues (StressCheck Clinic), and answer questions about our training course, our technical presentation, our software products and our composite repair solutions.

We’ll be handing out some fun giveaways at our booth! Stop by early to chat with us and grab one!

Participating ESRD Staff

Contact information for ESRD staff participating in ASIP Conference 2023 is as follows:

• Mr. Brent Lancaster – brent.lancaster@esrd.com
• Mr. Brian Lockwood – brian.lockwood@esrd.com
• Mr. Patrick Goulding – patrick.goulding@esrd.com

ESRD, Inc. will be exhibiting, presenting a technical paper (on DTA of bonded repairs) and providing a 2-hour training course in person and virtually at the ASIP Conference 2022 in Phoenix, AZ from November 28-December 1, 2022.  We hope you will drop by our technical presentation, training course and/or booth to check out the latest ESRD developments!

ESRD’s Training Course

A 2-hour training course titled “Best Practices for the Modeling & Analysis of Bonded Doubler Repairs” will be held Monday, November 28th from 10:00 AM – 12:00 PM local time by ESRD’s Brent Lancaster.  The course description is as follows:

Current methodologies for modeling and analysis of bonded repair patch designs for application to damaged sections of aircraft wing skin can be computationally expensive and difficult to implement in practice, relying instead on accumulated practical experience to determine the effectiveness of a given repair design. These methods, although effective, require a knowledge base acquired over many years of experience making sustainment organizations vulnerable to gaps in knowledge between newer members and more seasoned experts.

This training course will outline proposed methodologies, guidelines and best practices for utilizing ESRD’s StressCheck Professional finite element analysis (FEA) software to parametrically model, analyze and assess the effectiveness of composite or metallic bonded repair patch designs and variations. The effectiveness of repairs regarding static strength and damage tolerance will be addressed. In addition, strategies for efficient solution verification and hierarchic modeling approaches of 3D repair patches will be explored, and a set of representative demonstrations of technology will be provided.

In this 2-hour training course, we will focus on the following topics:

• StressCheck’s FEA technology implementation enabling modeling of very thin domains, including adhesive layers with 3D-solid elements.
• Best practices and guidelines for modeling and analyzing 3D bonded repair doubler variations (e.g. racetrack/rectangular, circular/elliptical, tapered, metallic, ply-by-ply, homogenized, etc.) for circular cutouts and grindouts.
• Performing “what if?” logic-driven studies of a digital 3D bonded repair handbook solution via StressCheck API-powered Engineering Simulation App, in which user-defined input data is passed from Python or Excel VBA to StressCheck Professional to perform scripted “on-the-fly” model adjustments and repair-oriented computations.

The training course content will be based on concepts from the following resources, available on ESRD’s Resource Library and online documentation:

• A System for Simulation Governance of Engineered Repairs of Composite Aircraft Structures
• Bonded Composite Repair Patch for Cracked Hole (Video)
• Laminated Composite Repair Patch Part I – Geometry & Meshing (Video)
• Laminated Composite Repair Patch Part II – Materials, BC’s & Results
• Laminated Composite Repair Patch Part III – Geometric Nonlinear Analysis

ESRD’s Technical Presentation

A 30-minute technical presentation titled “DTA of Bonded Repairs on the Wing Skin of the C-130 Using Finite Elements” and authored by Mr. Brian Lockwood (ESRD), Mr. Ryan Patterson (Warner Robins ALC) and Dr. Scott Prost-Domasky (AP/ES) will be presented by Brian Lockwood on Thursday, December 1st at 3:30 PM local time.

As the principal investigator on this USAF SBIR-funded project, Brian will be presenting his work so far utilizing StressCheck’s finite element analysis implementation to assess the effectiveness of bonded skin repairs on the C-130 center wing. The technical presentation description is as follows:

Current methodologies for the design and application of repairs to damaged sections of aircraft wing skin can be lacking in analytical support, relying instead on accumulated practical experience to determine the effectiveness of a given patch design. These methods are, by their nature, effective, being based on observation, but inefficient, requiring a knowledge base acquired over years of experience. This can make sustainment organizations inflexible and vulnerable to gaps in knowledge between newer members and more seasoned experts. This approach is also problematic in its potential for wasted effort and material, applying repairs that may be more intensive than is required for a given situation.

These problems can all be addressed by the introduction of an accessible, robust analysis methodology cast in the form of an Engineering Simulation Application for the verification of a repair’s performance qualities prior to an actual aircraft application. The finite element method is ideally suited to provide an analysis procedure for this type of problems that can be used by analysts with widely varying degrees of expertise both in numerical simulation and bonded repair application. This presentation will outline a proposed methodology for utilizing finite element analysis to assess the effectiveness of a given bonded repair.

ESRD’s Exhibit Booth

ESRD can be found at Booth 12 and will have several staff members available to chat, provide demonstrations, troubleshoot issues (StressCheck Clinic), and answer questions about our training course, our technical presentation, our software products and our composite repair solutions.

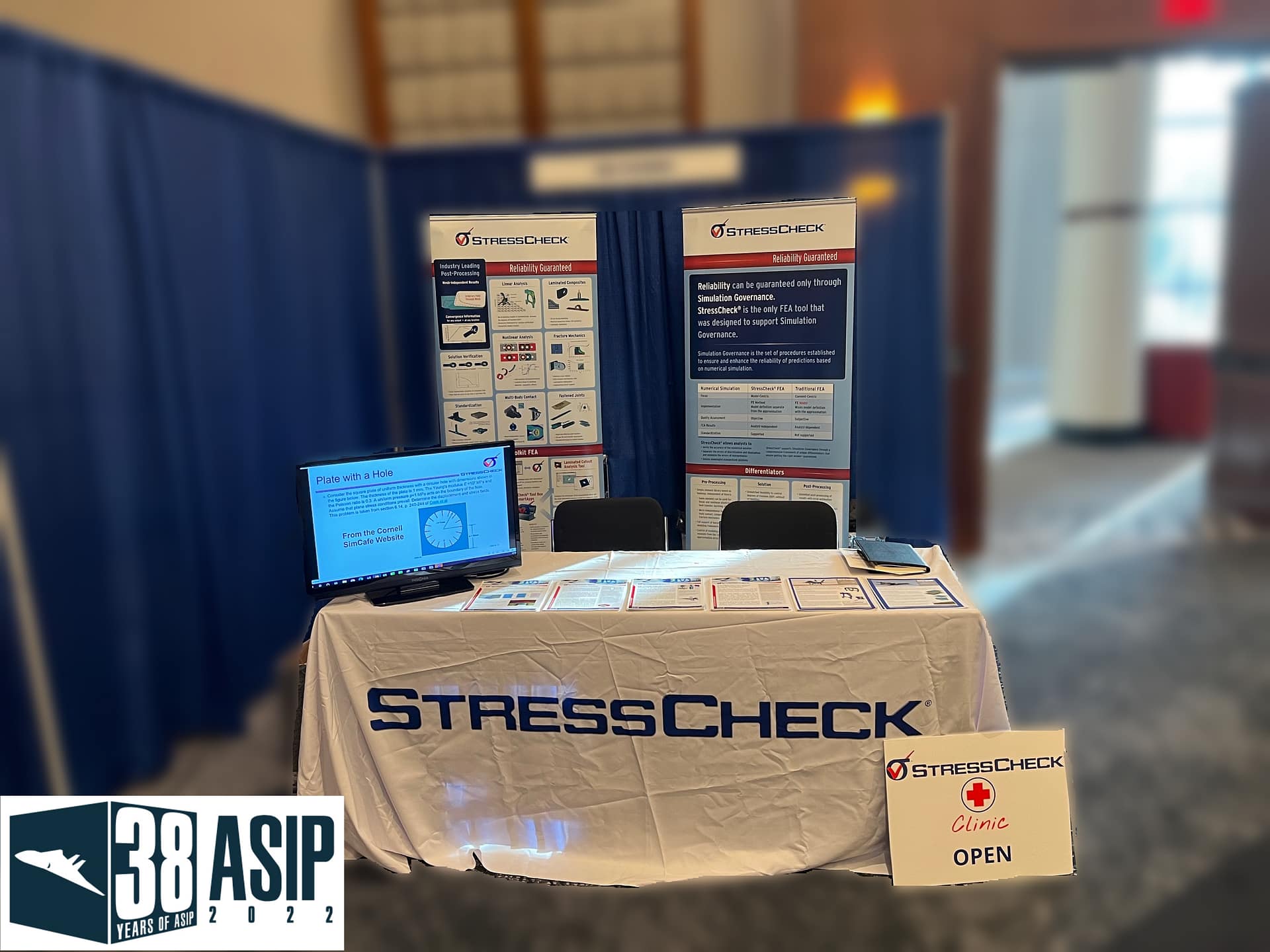

The StressCheck Clinic

StressCheck users may drop by our booth on a first-come, first-served basis to discuss any StressCheck-related questions, issues or feature requests with us. This includes troubleshooting customer models, demonstrating StressCheck features, and providing best practices/tips on how best to optimize StressCheck’s use.

Want to ensure ESRD’s booth staff is well-equipped to answer your StressCheck Clinic request? Click the below button, include “StressCheck Clinic Request” in the message subject, provide a brief explanation, and we will be prepared to discuss your request at our booth. Note: Customer membership level is required.

As a courtesy to other conference participants, we request that StressCheck Clinic visits be capped at 30 minutes.

Participating ESRD Staff

Contact information for ESRD staff participating in ASIP Conference 2022 is as follows:

• Mr. Brent Lancaster – brent.lancaster@esrd.com
• Mr. Brian Lockwood – brian.lockwood@esrd.com

Recently at ASIP 2022 in Phoenix, AZ, ESRD provided a 2-hour training course titled “Best Practices for the Modeling and Analysis of Bonded Doubler Repairs”, presented a technical paper titled “DTA of Bonded Repairs on the Wing Skin of the C-130 Using Finite Elements“, chatted with “patients” at the StressCheck Clinic, and exhibited at our captivating booth inside the Sheraton Phoenix Hotel & Conference Center.

We are also planning a webinar for February 7, 2023 titled “What’s New and Improved in StressCheck Professional”. We hope you can attend this “must-see” event!

Conference Snapshot

ESRD’s Brent Lancaster and Brian Lockwood enjoyed meeting many of the ASIP attendees, connecting with a wide variety of our customers and colleagues, and sharing ESRD’s expertise on the development of bonded repair solutions for aircraft structural applications. We were also pleased to learn how valuable StressCheck’s solutions are becoming to ASIP engineers and DaDT analysts, with more than a half-dozen ASIP 2022 technical presentations referencing StressCheck and/or Hill Engineering’s BAMpF (which uses StressCheck to compute FEA-based SIF solutions).

As always, thanks to those who attended Brent’s training presentation, Brian’s technical paper presentation and/or stopped by our booth to say hello to Brent and Brian. We are already looking forward to attending ASIP 2023 in Denver, Colorado.

ASIP 2022 Training Materials Available

On Monday, November 28th, Brent had the pleasure of providing a training course to a group of attentive ASIP engineers on best practices, tips and tricks for modeling bonded repair doublers in StressCheck Professional. Thanks to those who attended the training course in person (as well as virtually)!

If you are interested in this topic, you can download Brent’s training presentation (in PowerPoint show or PDF format) and watch the twenty-one (21) video demos via the below link (note: you must be a registered user to view the training materials):

We are looking forward to receiving your feedback on the training course presentation, as well as your ideas for ASIP 2023 training course topics.

ASIP 2022 Technical Paper Presentation Available

On Thursday, December 1st, Brian had the honor of presenting his technical paper “DTA of Bonded Repairs on the Wing Skin of the C-130 Using Finite Elements” to a strong audience of engaged ASIP attendees. The paper was a collaboration between ESRD, AP/ES (Dr. Scott Prost-Domasky) and USAF AFMC WRALC/ENC (Laura Pawlikowski), and discussed the progress so far on their SBIR Phase II project (AF193-024 Finite Element Method for Bonded Repair Design).

More results will be presented at ASIP 2023. If you are interested in this topic, you can view Brian’s technical paper presentation (in PowerPoint show or PDF format) via the below link (note: you must be a registered user to view the training materials):

Upcoming Webinar

We are pleased to announce a 2-hour webinar on February 7, 2023 @ noon EST titled “What’s New and Improved in StressCheck Professional“. Demos and briefings will be provided on the following new features and enhancements, as well as features under development for our next release.

New features and enhancements already available with the latest StressCheck release (v11.1) include but are not limited to:

• Support for mixed (tetra/penta/hexa) meshes
• Support for parametric scaling of global-local loads
• Upgraded infrastructure for faster model rendering and updating
• Improvements to load record management and load attribute rendering
• Improved strategies for 3D crack automeshing

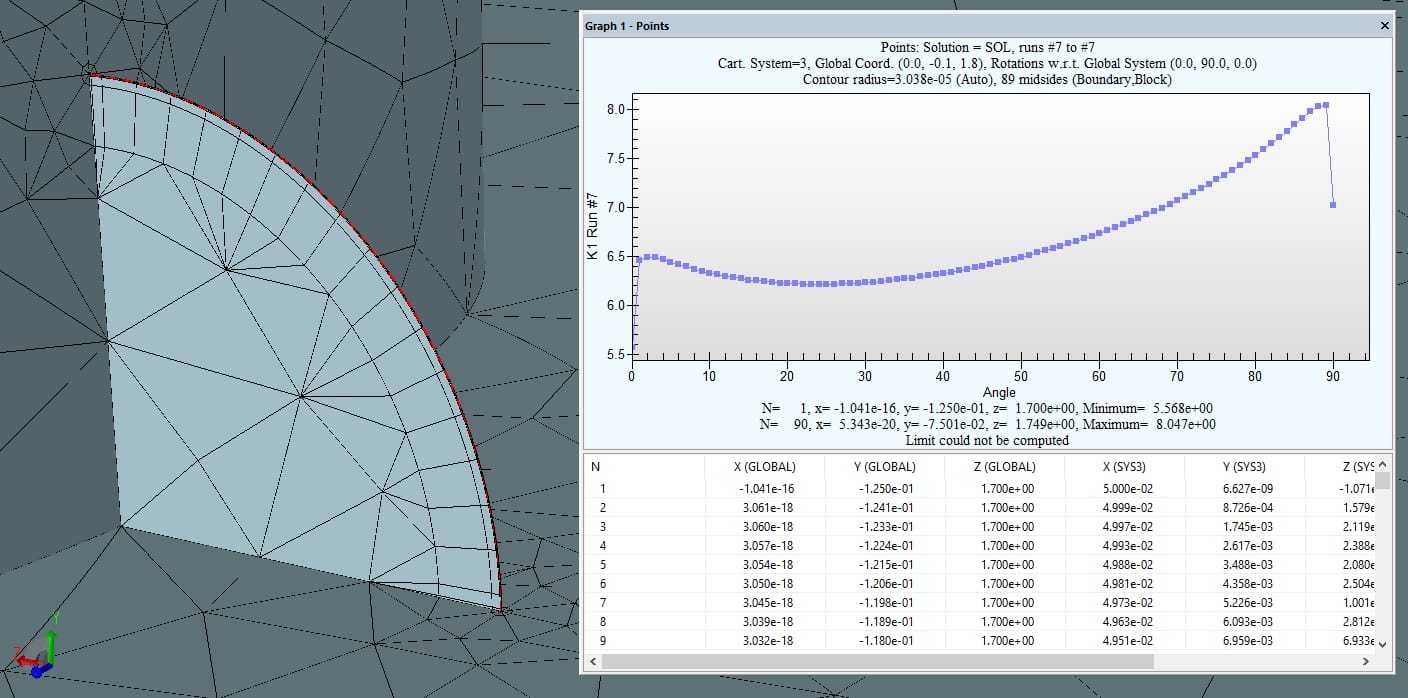

• Improved strategies for 3D stress intensity factor (SIF) computation
• Enhancements to support the automeshing of thin parts and domains
• New CHM-based offline documentation
• New COM API documentation

Expected features and enhancements for our next StressCheck release (v11.2) will include:

• Mesh seeding to guide the Automesh by automatically using pre-existing node locations.
• Upgraded toolbar icons for a clear and improved user experience.
• New option to select the toolbar icons between 16×16 (default), 20×20 and 24×24 pixels size.
• Movable Min/Max labels for Results plotting and extractions.
• A Dependencies button on the Parameter pane which lists all dependencies on the selected parameter.
• Column sorting and filtering for Parameters pane table including “Go To” to search for parameters.
• Predictive text on input fields has been implemented for parameter and formula names.
• Enhanced Index controls for filtering and sorting Geometry and Mesh object lists. including “Go To ID…” to access a specific ID.
• Improved visualization of Selected status on dropdown lists containing assignment/set records.
• Overhauled the Display Objects pane to support selective number ranges and additional object types.
• Re-designed color definitions pane.
• A list of object IDs belonging to a set “Contents:” and a list of objects that reference the set “Used By:” are now displayed when selecting a record on the Sets page.
• Improved consistency of DeLast/Undo functionality
• And much more under development!

We will also host a Q&A session at the end of the webinar to allow attendees to interact with and provide feedback to members of our product development team.

To register for this “can’t miss” webinar, please complete the form below:
