SAINT LOUIS, MISSOURI – April 2, 2018

In our last S.A.F.E.R. Simulation post, we explored the growing importance of Verification and Validation (V&V) as the use of simulation software becomes more wide spread among not just FEA specialists but also the non-FEA expert design engineer. The emphasis on increased V&V has driven a need for improved Simulation Governance to provide managerial oversight of all the methods, standards, best practices, processes, and software to ensure the reliable use of simulation technologies by expert and novice alike.

In this final post of our current series we will profile the stress analysis software product StressCheck and the applications for which it is used in A&D engineering. StressCheck incorporates the latest advances in numerical simulation technologies that provide intrinsic, automatic capabilities for solution verification through the use of hierarchic finite element spaces, and a hierarchic modeling framework to evaluate the effect of simplifying modeling assumptions in the predictions. We will detail what that actually means for engineering users and how StressCheck enables the practice of Simulation Governance by engineering managers to make simulation Simple, Accurate, Fast, Efficient, and Reliable – S.A.F.E.R. – for experts and non-experts alike.

What is StressCheck?

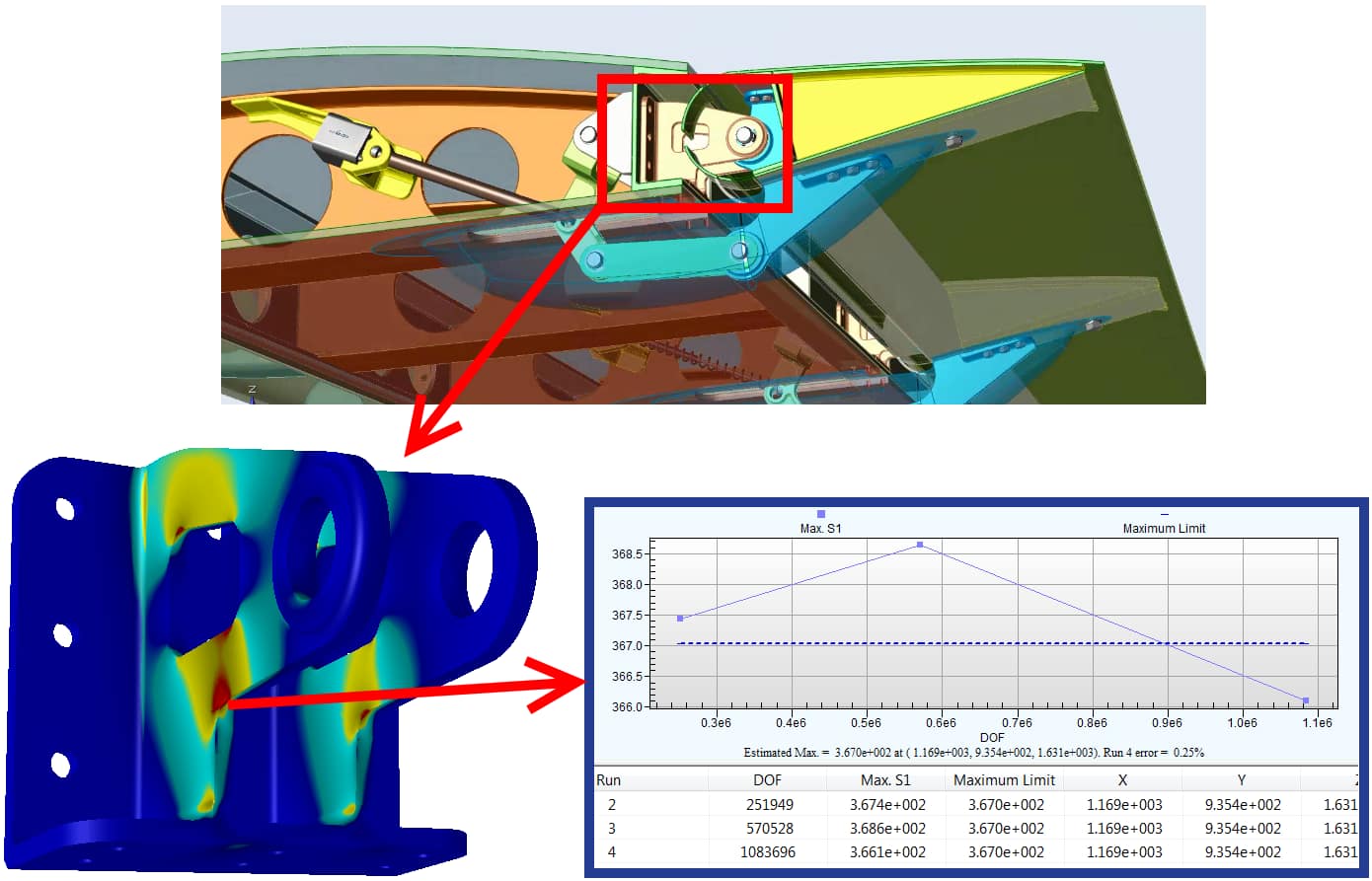

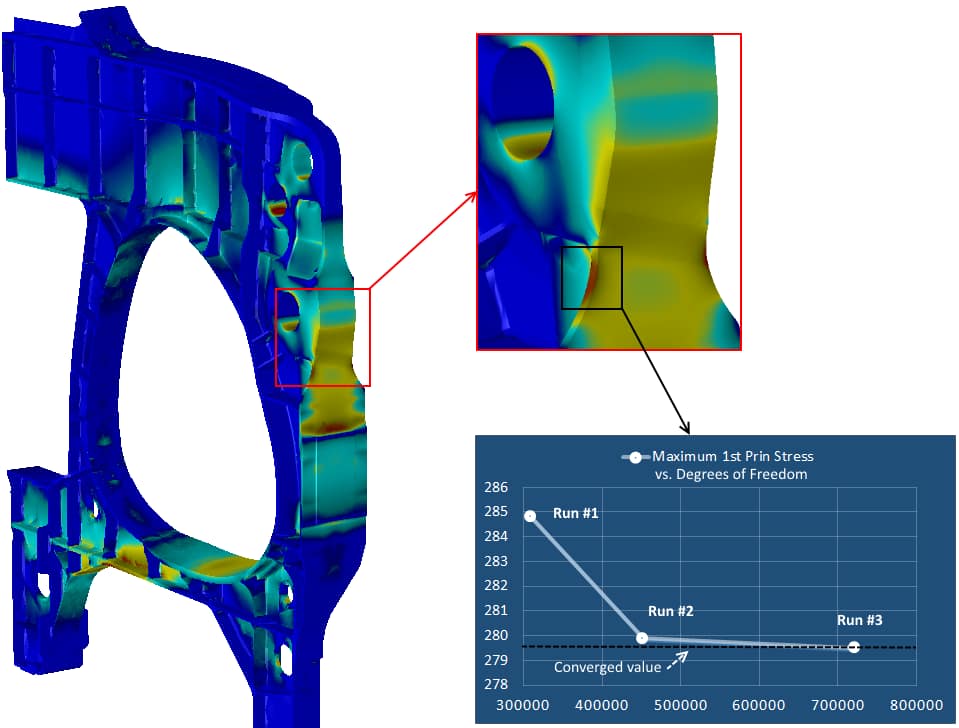

StressCheck live results extraction showing the convergence of maximum stress on a small blend in an imported legacy FEA bulkhead mesh.

StressCheck is an engineering structural analysis software tool developed from its inception by Engineering Software Research & Development (ESRD) to exploit the most recent advances in numerical simulation that support Verification and Validation procedures to enable the practice of Simulation Governance. While StressCheck is based on the finite element method, StressCheck implements a different mathematical foundation than legacy-generation FEA software. StressCheck is based on hierarchic finite element spaces capable of producing a sequence of converging solutions of verifiable computational accuracy. This approach not only has a great effect on improving the quality of analysis results but also in reforming the time-consuming and error-prone steps of FEA pre-processing, solving, and post-processing as they have been performed for decades.

The origins of StressCheck extend from R&D work performed by ESRD in support of military aircraft programs of the U.S, Department of Defense. The motivation behind the development of StressCheck was to help structural engineers tackle some of the most elusive analysis problems encountered by A&D OEM suppliers and their contracting agencies in the design, manufacture, test, and sustainment of both new and aging aircraft. Historically, many of these problem types required highly experienced analysts using expert-only software tools. Yet even then, the results produced were dependent on the same expert to assess their own validity of output.

During the development of StressCheck, ESRD realized that many aerospace contractors were frustrated with the complexity, time, and uncertainty of stress analysis performed using the results of legacy finite element modeling software. As a consequence, it was not uncommon that engineering groups relied upon or even preferred to use design curves, handbooks, empirical methods, look-up tables, previous design calculations, and closed-form solutions. The time to create, debug, and then tune elaborately constructed and intricately meshed finite element models was just too exorbitant, especially early in the design cycle where changes to geometry and loads were frequent.

StressCheck was developed to address these deficiencies. Since its introduction it has now been used by every leading U.S. aircraft contractor along with many of their supply chain and sustainment partners.

What are the applications for StressCheck in the A&D industry?

StressCheck is ideally suited for engineering analysis problems in solid mechanics which require a high-fidelity solution of a known computational accuracy that is independent of the user’s expertise or the model’s mesh. In the aviation, aerospace, and defense industries these application problem classes include: structural strength analysis, detail stress analysis, buckling analysis, global/local workflows, fastened and bonded joint analysis, composite laminates, multi-body contact, engineered residual stresses, structural repairs, and fatigue and fracture mechanics in support of durability and damage tolerance (DaDT). To explore examples of these applications visit our Applications showcase area and click on any of the featured tiles.

StressCheck is not intended to be a replacement for general purpose finite element codes used for internal loads modeling of large aero-structures or complete aircraft. In these global loads models an artisan-like approach of building up a digital structure using an assortment of 2D frame and shell element types, typically of mixed element formulations with incompatible theories, may be sufficient when accuracy beyond that of approximate relative load distributions is unimportant. Most of the strength, stress, and fatigue analyses performed by aerospace structures groups occurs downstream of the global loads modeling. Historically, these analyses workflows required a series of models, each progressively adding in more structural details that had previously been approximated in often crude fashion or ignored all together.

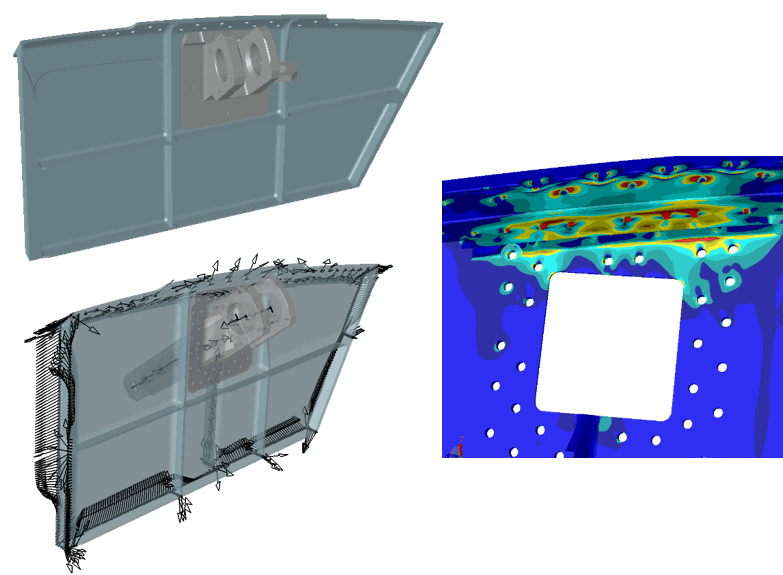

Multi-scale, global-local including multi-body contact analysis of wing rib structure in StressCheck.

Using StressCheck it is now feasible to employ FEA with analysis problems which require modeling large spans of an aero-structure that has widely varying geometric dimensions with numerous joints, fasteners, cutouts, material types and stress concentrations. Before with traditional FEA methods it was often impossible to use solid elements throughout a multi-scale model using geometry directly from CAD data. So much time and often tricks were required to simplify, defeature, approximate, and repair the design topology that engineering managers were reluctant to approve the use of FEA for some analysis types.

Because of its inherent robustness and reliability, StressCheck is also ideal as the solver engine powering a new generation of Simulation Apps which help to democratize the power of simulation. Smart Sim Apps based on StressCheck can help to simplify, standardize, automate, and optimize recurring analysis workflows such that non-expert engineers may employ FEA-based analysis tools with even greater confidence than expert analysts can using legacy software tools.

How is StressCheck’s numerical simulation technology different from that used by legacy or traditional FEA softwares?

In a previous S.A.F.E.R. Simulation post we exposed the limitations of finite element modeling as it has been practiced to date. Most of these constraints are attributable to decisions made early in the development of the first generation of FEA software years before high performance computing was available on the engineers desktop. Unfortunately, those limitations became so entrenched in the thinking, expectations, and practices of CAE solution providers such that each new generation of FEA software was still polluted by these artifacts. To learn how this occurred and what makes StressCheck’s numerical simulation technology so different, we encourage you to view the 3.5-minute StressCheck Differentiators video:

What are the key differences and advantages of StressCheck for users?

StressCheck has numerous intrinsic features that support hierarchic modeling, live dynamic results processing, automatic reporting of approximation errors & more.

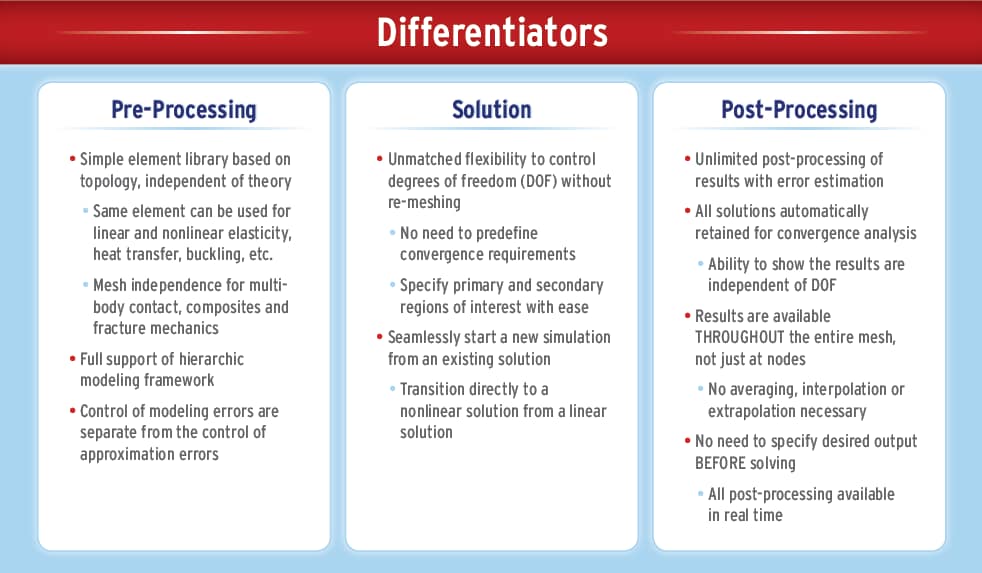

The most visible difference to the new user is that StressCheck employs a much smaller, simpler, and smarter library of elements. There are only five element types to approximate the solution of a problem of elasticity, whether it is planar, axi-symmetric, or three-dimensional. This compares to the many dozens of element types of legacy FEA software which often require a wizard to know which one to select, where to use or not to use them and more importantly, how to understand their idiosyncrasies and interpret their often erratic behavior.

The second big difference for users is that StressCheck elements map to geometry without the need for simplification or defeaturing. The available higher-order mapping means that the elements are far more robust with respect to size, aspect ratio, and distortion. As such, a relatively coarse mesh created just to follow geometry may be used across variant-scale topologies. There is no loss of resolution or a need for intermediate highly simplified “stick & frame” or “plate & beam” models.

StressCheck meshes are much easier to create, check, and change as the elements and their mesh no longer have to be the principal focus and concern of the analyst’s attention. StressCheck models aren’t fragile nor do they break as easily, and thus have to be recreated, with changes to design geometry, boundary conditions, or analysis types (e.g., linear, nonlinear, buckling). For example, a linear analysis result is the starting point for a subsequent nonlinear analysis, so the analyst simply switches solver tabs to obtain a nonlinear solution. Because of the use of hierarchic spaces during the solution execution, each run is a subset of the previous run, making it possible to perform error estimation of any result of interest, anywhere in the model after a sequence of solutions is obtained.

So, what’s the bottom line? High-fidelity solutions can be obtained from low-density meshes while preserving an explicit automatic measurement of solution quality.  No guesswork is required to determine if the FEA result can be trusted.

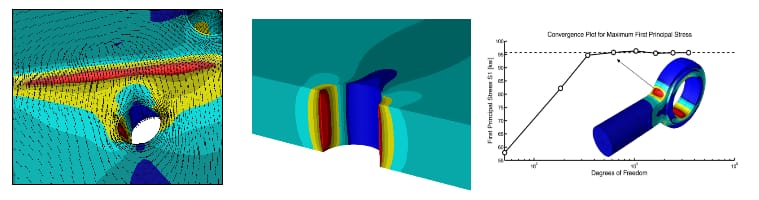

Detailed stress concentrations represented on “low-density” StressCheck meshes.

The errors of idealization are separated from those due to discretization/approximation (e.g. do I have ‘enough’ mesh? DOF? Element curvature?). Sources of inaccuracies and errors are immediately identifiable not because an expert catches it, but because the software is intelligent enough to report them. For each analysis users are provided with a dashboard of convergence curves that show the error in any one of a number of engineering quantities such as stress, strain, and energy norm.

Because solutions are continuous, a-priori knowledge or educated guesses of where stress concentrations may occur are no longer needed. Any engineering data of interest can dynamically be extracted at any location within the continuous domain and at any time without loss of precision due to interpolation or other post-processing manipulation necessitated from having nodal results only, characteristic of legacy FEA codes. Proof of solution convergence is also provided for any function at any location regardless of the element mesh and nodal location. As a consequence, the post-processing of fixed solutions common in legacy FEA becomes in StressCheck dynamic instantaneous extraction of live results:

What is the benefit to engineering groups and value to A&D programs from the use of StressCheck?

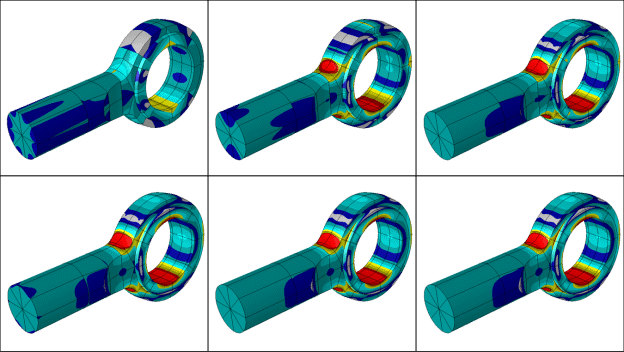

StressCheck automatically increases the approximation of stresses on a fixed mesh, making solution verification simple, accurate, fast, efficient & reliable.

With the use of StressCheck, the results of FEA-based structural analysis are far less dependent on the user expertise, modeling approximations, or mesh details. High-fidelity stress analysis of complex 3D solid model geometries, with numerous joints and fastener connections typical of aero-structures may be obtained in less time, with reduced complexity and greater confidence.

As a result, the stress analysis function becomes an inherently more reliable and repeatable competency for the engineering organization. FEA-based structural analysis performed with StressCheck is not an error-prone process where every different combination of user, software, elements, and mesh risks generating different answers all to the dismay of engineering leads and program managers.

By using industry application-focused, advanced numerical simulation software like StressCheck it is now possible to simplify, standardize, and automate some recurring analysis tasks to become more robust for less experienced engineers to conduct. New engineers are productive sooner with access to safer analysis tools that are intelligent enough to capture institutional methods and incorporate best practices. The role and value of the expert engineering analyst evolves to a higher level by creating improved methods and custom tools such as automated global local workflow templates and Sim Apps, respectively.

As presented in the first post of this series, the business drivers to produce higher performing damage tolerant aero-structures are requiring a near hyper-level of engineering productivity, precision, and confidence from the use of simulation technologies earlier in the design cycle. This is also true in the later stages as digital simulation replaces more physical prototyping and flight testing to facilitate concurrency of engineering and build.

Status-quo methodologies dependent on expert-only software that risk adding more time, risk, and uncertainty to the project plan is no longer satisfactory to meet these demands. Next generation simulation technologies implemented in software like StressCheck can help to encapsulate complexity, contain cost, improve reliability, mitigate risk, accelerate maturity, and support better governance of the engineering simulation function.

With StressCheck engineering simulation is Simple, Accurate, Fast, Efficient, and Reliable.

Coming Up Next…

We will discuss why StressCheck is an ideal numerical simulation tool for both benchmarking and digital engineering handbook development (i.e. StressCheck CAE handbooks).  In addition, we will provide examples of how StressCheck CAE handbooks are a robust form of Smart Sim Apps that serve to encapsulate both tribal knowledge and state-of-the-art simulation best practices.

To receive future S.A.F.E.R. Simulation posts…

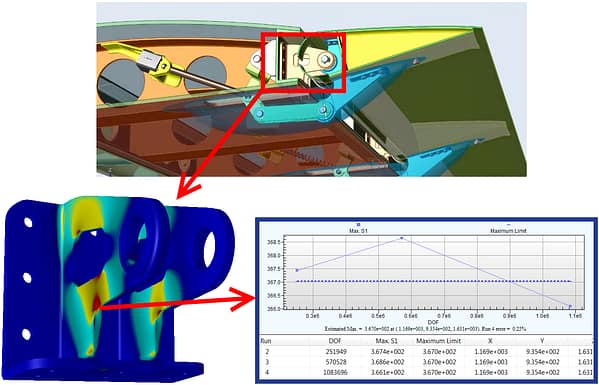

ESRD and Altair will be presenting a novel Aerospace & Defense (A&D) industry webinar, “Global-Local Workflows and High-Fidelity Stress Analysis for a Wing Flap Hinge Fitting“, on April 10th at 10:00 am EDT.  Strength Engineers, Simulation Analysts, Aerospace & Defense Professionals, Optimization Specialists and Engineering Group Managers who are responsible for the performance and quality of structural strength, stress, fatigue, and design certification should attend.

Here is a brief synopsis of the co-hosted Altair webinar:

StressCheck by APA partner ESRD is the preferred tool within the A&D industry for high-fidelity stress analysis in support of global-local analysis workflows associated with aerostructure design. StressCheck is unique in that it provides live dynamic extraction of computed results at any location in the model, regardless of the mesh, and of a known accuracy.

In this webinar, we will analyze a part from Altair’s Aero Wing concept, the flap hinge fitting, and perform a global-local case study to provide confidence in its optimized design. This global-local workflow process may then be repeated for any other component of interest within the Aero Wing structural assembly.

If you would like to attend, please sign up for the webinar here.

We look forward to discussing how we can help improve your global-local workflows and detailed stress analysis numerical simulations, and how you can incorporate S.A.F.E.R. Simulation in your projects.

On April 10th, ESRD and Altair co-presented a novel Aerospace & Defense (A&D) industry webinar, “Global-Local Workflows and High-Fidelity Stress Analysis for a Wing Flap Hinge Fitting“. If you were not able to attend, don’t worry; the on-demand webinar is now available!

Here is a brief synopsis of the co-hosted Altair webinar:

StressCheck by APA partner ESRD is the preferred tool within the A&D industry for high-fidelity stress analysis in support of global-local analysis workflows associated with aerostructure design. StressCheck is unique in that it provides live dynamic extraction of computed results at any location in the model, regardless of the mesh, and of a known accuracy.

In this webinar, we will analyze a part from Altair’s Aero Wing concept, the flap hinge fitting, and perform a global-local case study to provide confidence in its optimized design. This global-local workflow process may then be repeated for any other component of interest within the Aero Wing structural assembly.

To view the on-demand webinar, click the button below and then click “View on-demand webinar” in the top right:

Thanks to Altair for hosting this webinar, and for helping us deliver S.A.F.E.R. Simulation in the A&D industry.

In a previous edition of S.A.F.E.R. Simulation Views, we asked U.S. Navy NAVAIR Systems Command’s David Rusk about the challenges faced by A&D programs.

In this month’s S.A.F.E.R. Simulation Views we asked Brent Lancaster, Principal Support Engineer at ESRD, to discuss the basics of StressCheck Professional:

Q: What prompted the development of your software? What problem(s) is StressCheck meant to solve?

Brent:

Engineering Software Research and Development (ESRD) produces advanced engineering software, powered by higher-order, hierarchical finite element analysis solutions, and offers professional services in numerical simulation for the mechanical, aerospace and structural engineering industries.

Engineering analysis software should simultaneously improve the reliability of numerical solutions while reducing the time required for performing computer-aided engineering (CAE) tasks. This two-pronged strategy reduces costly physical testing and increases reliance on numerical simulation, saving the engineering community manufacturing, machining and design modification costs.

ESRD’s products and services fully embody this strategy, allowing us to establish the reliability of our engineering analyses with hassle-free solution verification and a hierarchic modeling framework that supports validation. ESRD’s flagship FEA software, StressCheck, wins in quality and efficiency by converging to the exact solution at a higher rate than our competitors, while simultaneously providing engineers crucial feedback that the model is fit for validation. Saving time and money while ensuring the quality of the answers, makes StressCheck the world’s premier high-definition, detailed numerical simulation tool.

StressCheck’s key solutions include detailed stress analysis, contact, global to local, laminated composites, fracture mechanics and engineered residual stresses due to cold-working, machining or other forming operations.

Q: What are the benefits of using StressCheck for fracture mechanics simulation?

Brent:

When performing fracture mechanics tasks, StressCheck users receive the high definition feedback information needed to establish the reliability and accuracy of the computed stress intensity factors (SIF), beta factors and energy release rates (ERR). This information is essential for accurate life prediction and damage tolerance assessment (DTA), a rapidly expanding need in the aerospace industry and beyond.

Some of the highlights of StressCheck’s fracture mechanics features are:

• Superconvergent SIF extractions – converges in less time that our competitors with fewer requirements for meshing.
• 3D crack insertion capability – model any crack shape, anywhere in a parametric or imported CAD part, with specialized meshing tools for accurate beta factors extraction.
• Point and click SIFs – get converged results anywhere along the 3D crack front to improve crack growth predictions.
• Combine global-local, contact and fracture mechanics seamlessly – no special elements, solvers or tricks required.
• Influence of residual stresses – incorporate coldworking, subsurface or bulk material residual stress effects when computing SIFs.



Q: Are there any unique applications that StressCheck works for that your competition cannot?

Brent:

Predicting fatigue-critical peak stresses and associated stress gradients in CAD parts with small and complex features is an application that is a huge challenge for our competitors. This is because their implementations are not designed to seamlessly quantify and separate discretization errors from modeling errors. Our competitors’ lack of this fundamental post-processing feedback limits the complexity of applications that can confidently be performed by their software, even for an application as basic as the one above.

As a result, many of ESRD’s customers rely on StressCheck as their go-to FEA solution for life extension, damage tolerance, plastic failure, fastened connections and laminated composites because they know they will get the correct answer.

Q: How much time does it take to learn and start using StressCheck?

Brent:

In order to establish the reliability of its solutions, StressCheck implements a more technologically rigorous approach to the finite element method (FEM) than our competitors. When coupled with a feature-rich interface supporting variable inputs and restriction-free outputs, StressCheck users will need more familiarity with the software in order to harness its full range of functionality.

If the application is as simple as importing a 3D solid, automeshing, applying material properties and BCs, solving a hierarchic series of increasingly refined solutions, plotting stress fringes and verifying the maximum stress converges to a limit, which is independent of the discretization, can be accomplished in less than an hour. In general, new StressCheck users can get up to speed in a manner of days or weeks, depending on the complexity of the application or the goals of the analysis.

See the above workflow performed in this step by step ESRD StressCheck Tutorial: Import CAD and Analyze Stress video.

More advanced or demanding applications, such as laminated composites, contact or cold-working analysis, may necessitate consulting the StressCheck Master Guide, visiting ESRD’s Customer Portal for best practices and demos, or hands-on training from a qualified ESRD representative.

To get started and become familiar with basic StressCheck features, we recommend first watching a broad-stroke overview of the StressCheck user interface and a sample workflow in this StressCheck Tutorial: GUI Walkthrough video.

Q: What are the biggest challenges or problems that customers in your target market face and how do you address their needs?

Brent:

Engineers involved in detailed analysis find that getting the right answer quickly and accurately is often difficult to achieve. Efficient simulations with error control are what make StressCheck stand out among the competition. StressCheck’s hierarchical modeling engine coupled with its separation of model definition (idealization) and numerical approximation helps ESRD’s clients find the correct answer quickly, an answer backed up automatically with data to show just how accurate within a range of tolerance (for example, an answer can be verified to be accurate within a margin of error of 2%).

Once the model is solved, engineers in many cases become interested in results different from what they originally had in mind.  In other words, they expect to have complete freedom in post-processing.  StressCheck allows users to live-query any location and any output within the area of interest, not requiring predefinition and eliminating the need to re-run the simulation if the user requires results outside the scope of the mesh design.

See an example of live-query results processing in this StressCheck Demo: Live Dynamic Extractions video.

Q: Describe a typical workflow using ESRD’s StressCheck.

Brent:

Imagine an engineer wants to quickly import a Parasolid assembly, incorporate a part-thru crack at a location, perform a multi-body contact analysis for more accurate interactions, and verify that the crack SIFs are converging well.  Here is the ideal workflow to complete the task:

• Import the Parasolid assembly using our file importation feature.
• Create or import the crack surface to be analyzed and insert into a flight-critical location in the assembly using the Boolean-Union method, resulting in a part-thru crack.
• Assign external loading (tension, bending, etc.) and constraints (fixed, spring, etc.) to the surfaces of the assembly and ensure that the assembly is properly constrained to prevent rigid body motion.
• Assign contact pairs to ensure the assembly transfers the load in contact regions.
• Tetmesh the assembly using curved elements and specialized meshing tools for the part-thru crack, including the Crack Face and Boundary Layer methods, for optimal grading.
• Define and assign material properties to the mesh.
• Solve the assembly via StressCheck’s automatic p-extension process, coupling its efficient contact algorithm with a powerful hierarchic element formulation, iterating until the difference between contact pressures of two consecutive iterations is sufficiently low.
• Check the quality of the load transfer and contact pressures to verify the solution is reliable.
• Plot the deformed shape to ensure that the part is deforming as expected, and the crack face is opening.
• Check convergence of SIFs at any location on the part-thru crack with fast Point and Click extractions.
• Query high-resolution gradients of SIF information along the crack front when multiple locations along the crack are used in crack growth.



See a similar workflow in action in this StressCheck Tutorial: 3D Elliptical Part-Thru Crack with Multi-Body Contact video.

Do you have a parametrized assembly, crack shape or loads?  Just change the relevant parameters and click Solve.  It’s really that simple: no tricks, shortcuts, or solver magic.

Q: What’s next for ESRD, what can we look forward to?

Brent:

There is an increasing demand in the engineering community for advanced capabilities in residual stress and crack extension analysis. Distortion due to machining and surface treatments such as shot peening are in need of refined solutions. With each StressCheck release, ESRD expands its analysis portfolio to account for challenges like these.

Speaking of StressCheck releases, we expect to release our next version, StressCheck v10.5, in Spring 2019. Be sure to subscribe to our newsletter to receive updates about our next product release.
