StressCheck Tutorial: Preserving Assignments using Locate Sets

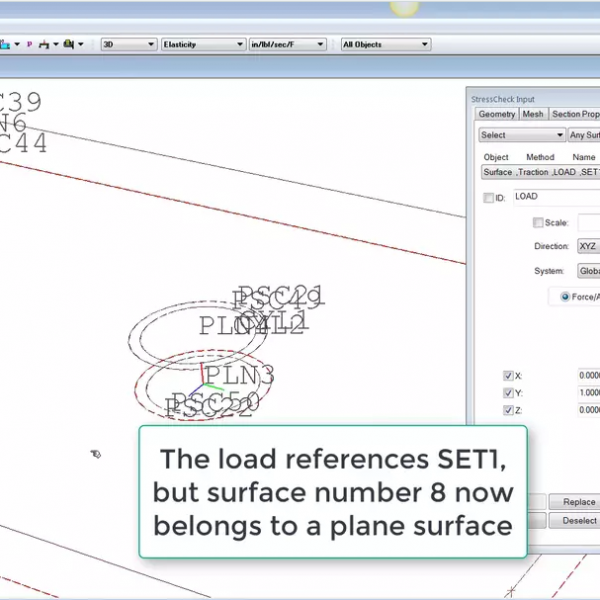

Abstract: Preserving assignment of boundary conditions using Locate sets. Locate sets do not depend on surface numbering, but on a pick point box. Useful for converting detailed stress geometry to fracture mechanics geometry (e.g. embedding crack surface).
