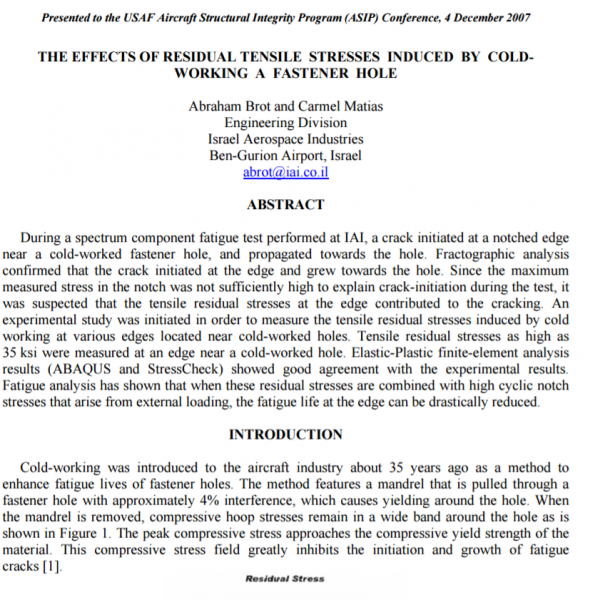

The Effects of Residual Tensile Stresses Induced by Cold-Working a Fastener Hole

During a spectrum component fatigue test performed at IAI, a crack initiated at a notched edge near a cold-worked fastener hole, and propagated towards the hole. Fractographic analysis confirmed that the crack initiated at the edge and grew towards the hole. Since the maximum measured stress in the notch was not sufficiently high to explain crack-initiation during the test, it was suspected that the tensile residual stresses at the edge contributed to the cracking. An experimental study was initiated in order to measure the tensile residual stresses induced by cold working at various edges located near cold-worked holes. Tensile residual stresses as high as 35 ksi were measured at an edge near a cold-worked hole. Elastic-Plastic finite-element analysis results (ABAQUS and StressCheck) showed good agreement with the experimental results. Fatigue analysis has shown that when these residual stresses are combined with high cyclic notch stresses that arise from external loading, the fatigue life at the edge can be drastically reduced.

  • Scroll to View This Resource (Login May Be Required)
You need to login to view this content. Please Login. Not a Member? Join Us
Categories: Linear Elasticity Solver, Non-Linear Solver, Simulation Technology, StressCheck Core, StressCheck Professional. Tags: Coldworking Stress, Nonlinear Analysis, Nonlinear Stress, Plot Extraction, Points Extraction, Residual Stress, Results.
