Detailed Stress Applications

Have you ever watched a movie on a CRT TV, and then watched the same movie on an HD TV? The difference in detail is stunning. With StressCheck’s high order FEA, all data of interest are in HD to ensure you don’t miss critical details.

StressCheck’s high definition stress analysis results are unlike any other in the industry; once you have used StressCheck’s hierarchic solver and unlimited live post-processing you’ll never want to go back.

Schedule a Detailed Stress Demo

Would you like a no-cost demonstration of our detailed stress engineering application solutions? Complete our Request an Engineering Application Demo form and we will get back to you shortly.

Schedule Demo

Crystal clear resolution in your stress analysis results is essential in predictions of fatigue life, finding stress concentrations and bearing distributions.

Detailed Stress Application Focus

The following are typical detailed stress analysis applications which are routinely performed in StressCheck Professional:

StressCheck® Core
Linear Elasticity Solver

View Case Studies

Applicable Products:

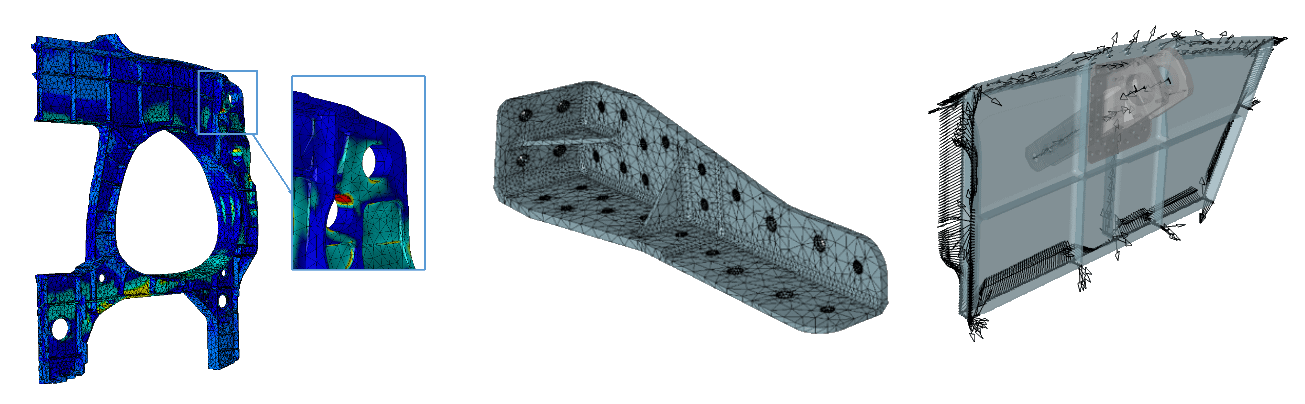

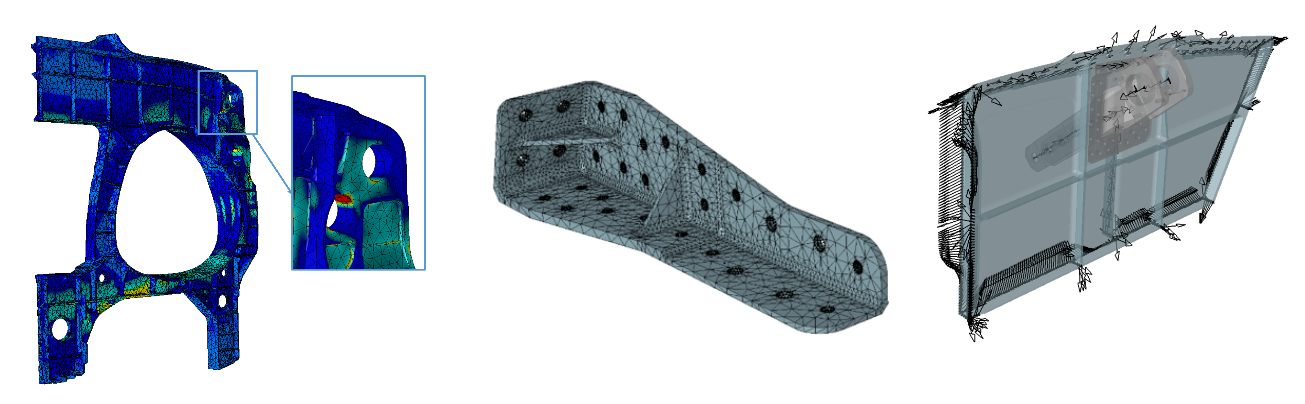

Global-local analysis is becoming a high-demand engineering application, especially those needing to transfer data from structural solutions to detailed FEA models. We have industry-leading support for these applications.

Global-Local Analysis

StressCheck® Core
Linear Elasticity Solver
Non-Linear Solver
Single Fastener Analysis Tool (SFAT)
Multi-Fastener Analysis Tool (MFAT)

View Case Studies

Applicable Products:

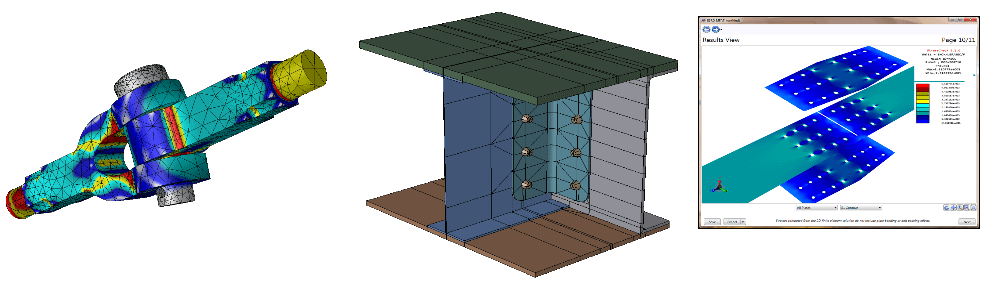

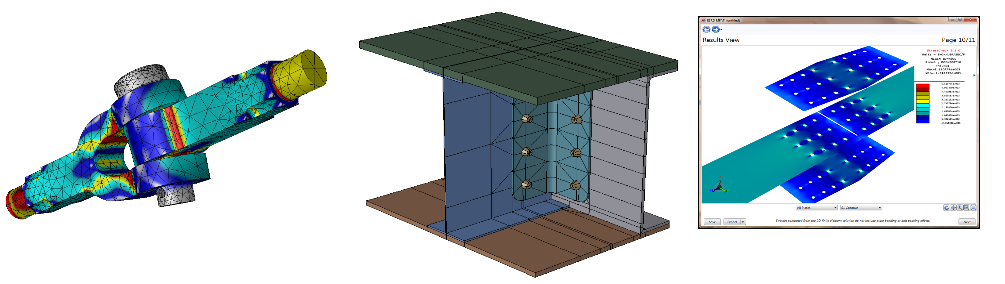

Fastened joint analysis is a common engineering application for our customers, especially those in strength and fatigue needing 360 degree hole stresses and highly accurate load transfer information.

Fastened Joint Analysis

StressCheck® Core
Linear Elasticity Solver
Non-Linear Solver

View Case Studies

Applicable Products:

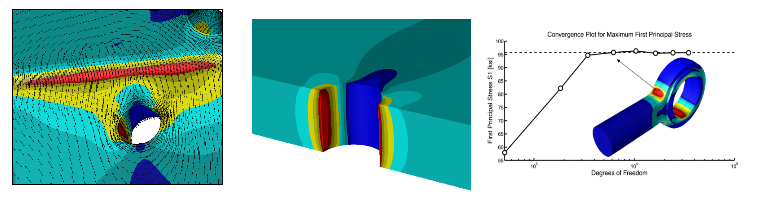

Finding converged peak stresses, stress concentrations and gradients in small features with high-curvature is a very difficult with conventional FEA, and very easy in ESRD products. This is a bread and butter application for us.

Stress Concentration Analysis
